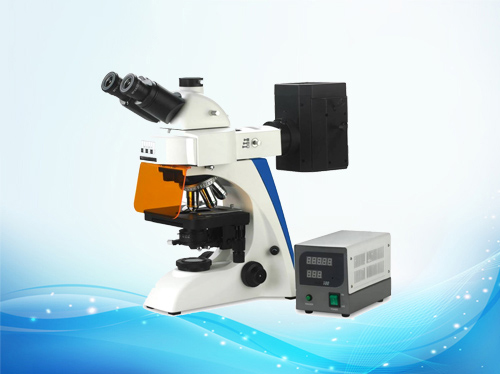

BK5000 Series Biological Microscope
BK5000 Series Biological Microscope Outfits
| Items | Specification | Outfits | |
| Eyepiece | WF10×／20mm (23.2) | ●● | |
| Infinity Plan Objectives | PLAN 4×／0.10 | W.D.=12.10mm | ● |
| PLAN 10×／0.25 | W.D.=4.64mm | ● | |
| PLAN 20×／0.40(S) | W.D.=2.41mm | ● | |
| PLAN 40×／0.66(S) | W.D.=0.65mm | ● | |
| PLAN 100×／1.25(S, Oil) | W.D.=0.12mm | ● | |
| PLAN 2.5×／0.07 | W.D.=8.47mm | ○ | |
| PLAN 60×／0.80(S) | W.D.=0.33mm | ○ | |
| PLAN 100×／1.15(S, W) | W.D.=0.19mm | ○ | |
| Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48mm -75mm | ● | |
| Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 48mm-75mm Light Distribution: 100: 0 / 80:20 |
○ | |
| Nosepiece | Quintuple | ● | |
| Mechanical Stage |
Stage Size: 175X145mm,Travel: 78mm×55mm Coaxial Coarse and Fine Focusing Knobs Two Slide Holder |
● | |
| Swing Out Condenser | Abbe N.A. 1.25 with iris diaphragm. | ● | |
|
Koehler Illumination Wide voltage input: 100V～240V Field diaphragm , center adjustable |
6V/20W Halogen Lamp | ● | |
| 6V/30W Halogen Lamp | |||
| 3W-LED Illumination | |||
| Filter | Blue | ● | |
| Green | ○ | ||
| Amber | ○ | ||
| Grey | ○ | ||
| C-mount | 1×C-mount ( better for digital photograph) | ○ | |
| 0.57× C-Mount (focus adjustable, better for digital camera) | ○ | ||
| Adaptor for Digital Photograph | Used for CANON／NIKON／OLYMPUS etc. | ○ | |
| Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | |
| Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp. | ○ | ||
| Phase Contrast Unit |
Quintuple hole turret 10× /20× /40× /100× phase contrast objective |
○ | |
|
Independent slot 10× /20× /40× /100× phase contrast objective |
○ | ||
| Dark Field Unit | Dark field condenser (dry)，apply to 4×- 40× objective | ○ | |
| Dark field condenser (wet)，apply to 100× objective | ○ | ||
| Polarizing Attachment | Analyzer / Polarizer | ○ | |
